Piezo Diaphragm


Piezo Diaphragm Sensor

TERRANOVA® MODEL 808
Piezo Silicon Diaphragm Vacuum Sensor

  • Full-Scale Pressure: 100 or 1000 Torr
  • Accuracy: 2%
  • Output Voltage: 0-10 VDC
  • Vacuum Connection 1/8 NPT
  • Electrical Connector: D-15 Male
  • Small Size: (1.5”W x 2.2” L x 2.0”H)
  • Gas-Species Independent
  • Low Cost
  • Compatible with CDG Controllers
  • Vacuum Surfaces Inert



The Terranova® Model 808 Silicon Diaphragm Vacuum Sensor provides a low cost alternative for gas-species independent pressure measurement in the range from 0.5 torr to 1000 torr.

Duniway part# Description Price Request Image

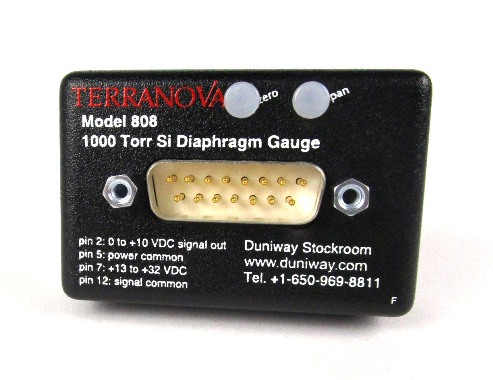

808-1000-NPT Type 808 Terranova Piezo Diaphragm Vacuum Sensor, 1/8" NPT Port (1000 Torr Full Scale Range) $620.00
808-C100-NPT Type 808 Terranova Piezo Diaphragm Vacuum Sensor, 1/8" NPT Port (100 Torr Full Scale Range) $620.00
